Interconnection Helpers
A missing link for any builder is a convenient method of connecting and disconnecting wings and other sub-assemblies when you travel. Our Interconnection Helpers are a perfect accessory for your scale project or large sport airplane. Sizes from 4+2 to 10+4 are available to save weight and for a perfect fit with your project. The universal servo cables are 30cm long. Battery power can be connected on either side of the interconnect.

Thomson Automation- all rights reserved 2010

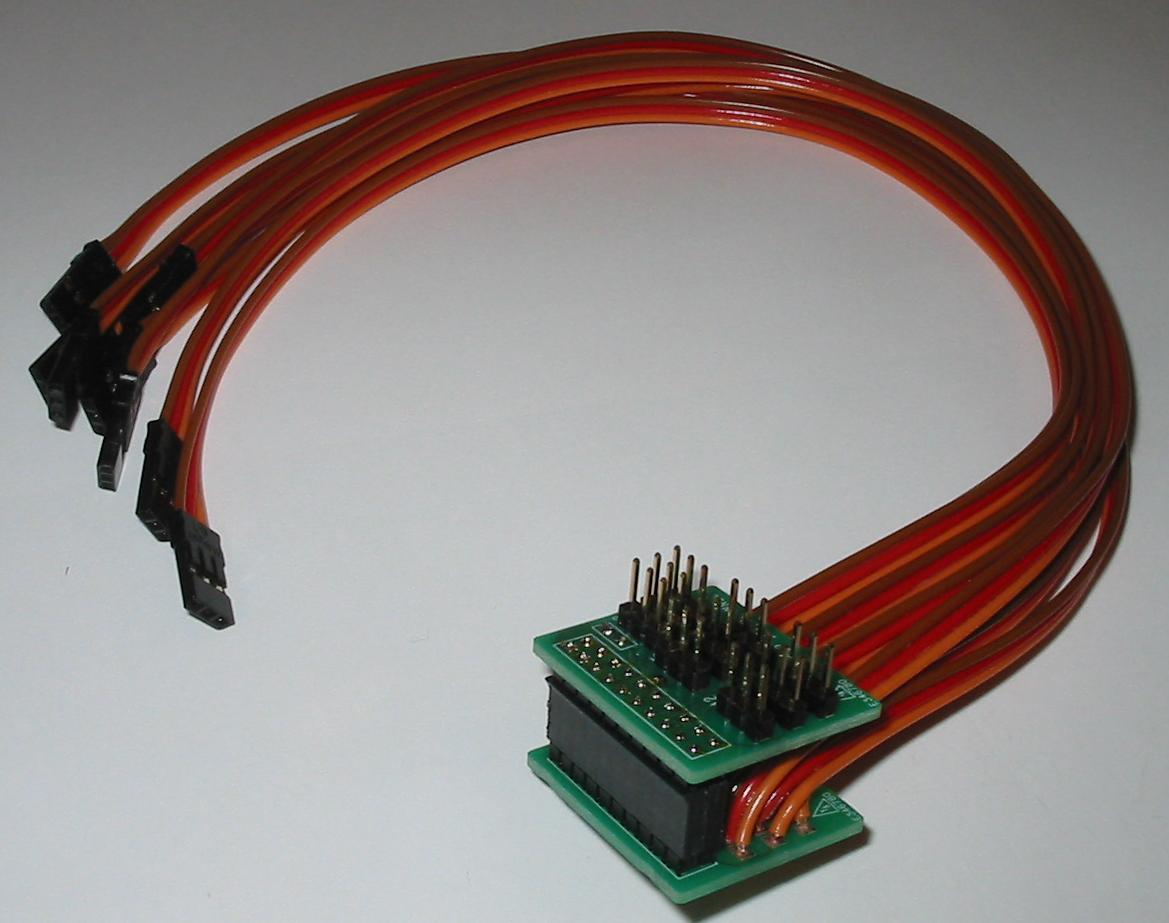

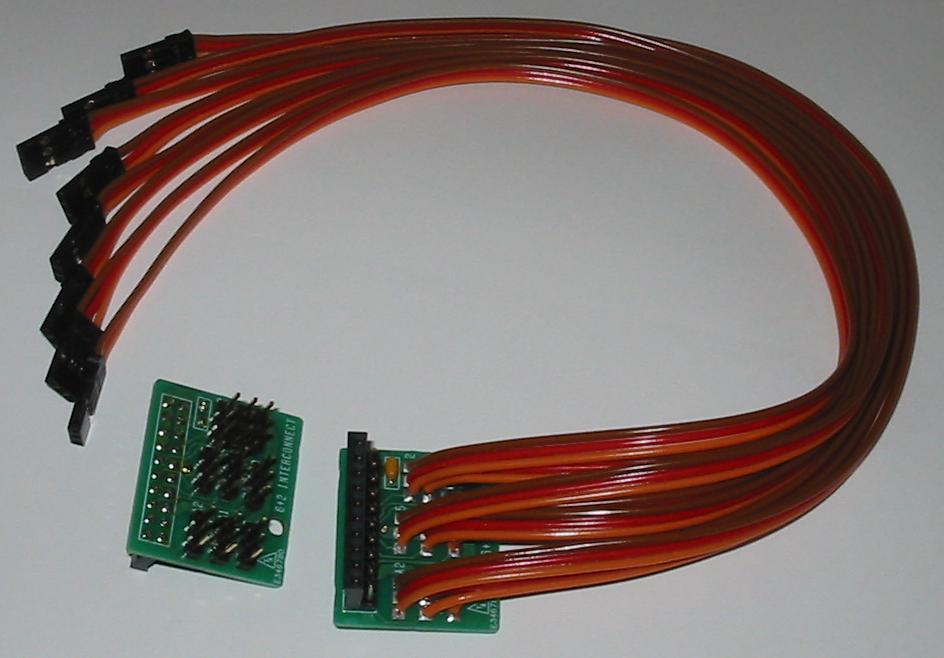

6+2 Interconnect

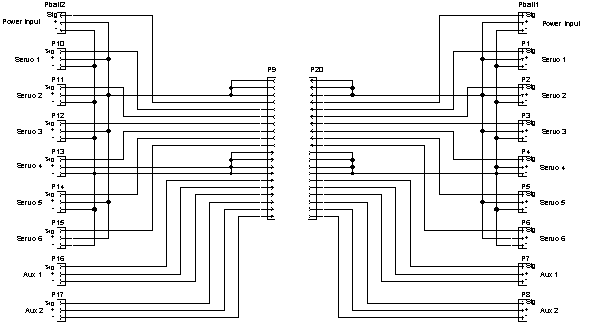

6+2 means 6 channels with common power pins for servos and 2 channels with 3 isolated pins each for other connections such as lighting and switches. The 6+2 interconnect can be ordered in any configuration from 1-6 servo channels and 0 to 2 isolated channels. In the 6+2 configuration, 8 servos can be connected if needed. There is a power connection each side that can be used as an extra servo channel. Connection Diagram

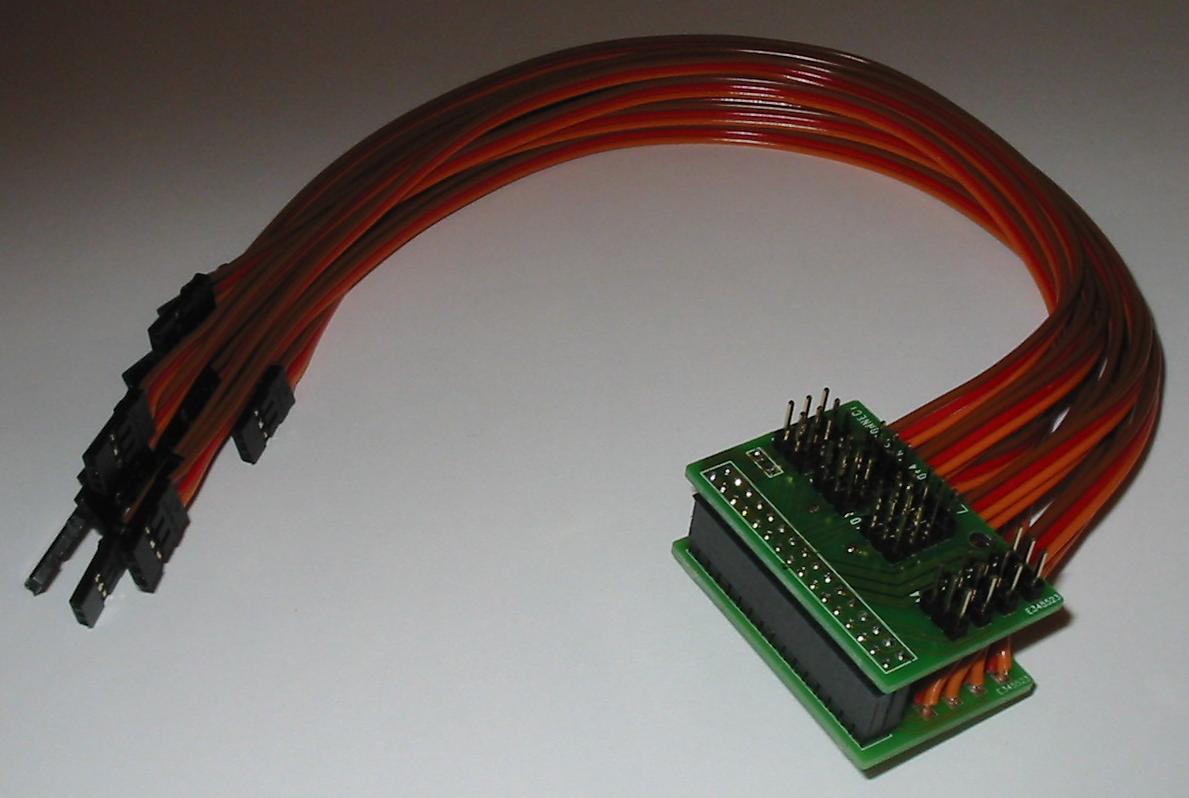

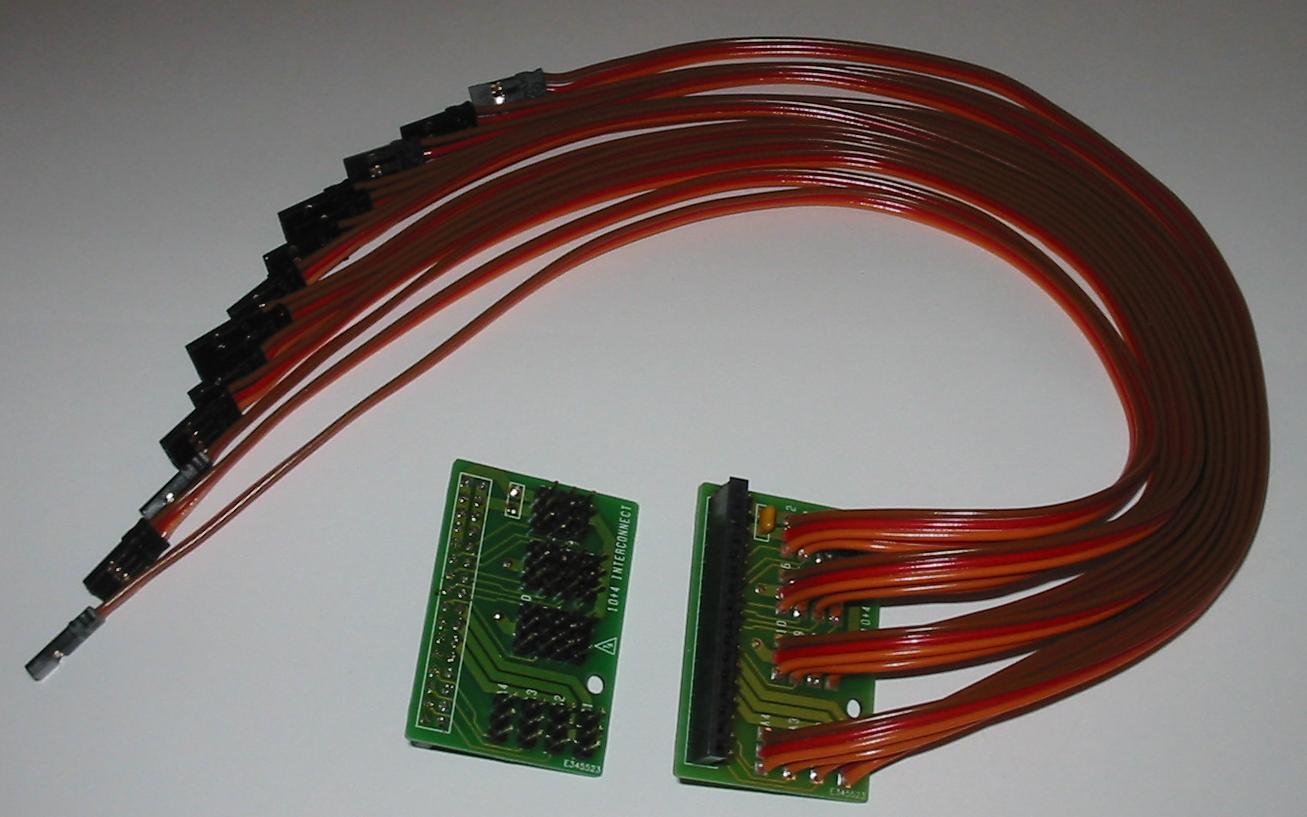

10+4 Interconnect

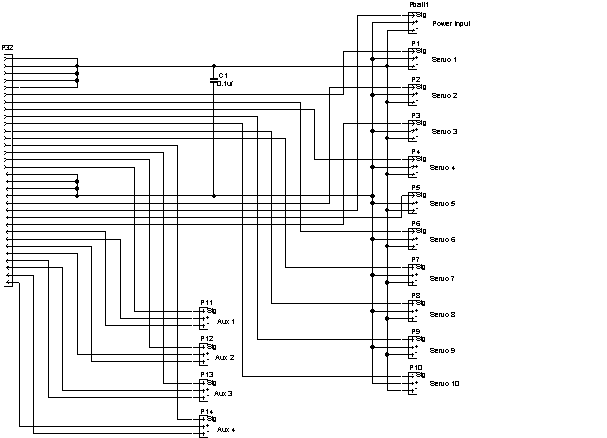

10+4 means 10 channels with common power pins for servos and 4 channels with 3 isolated pins each for other connections such as lighting and switches. The 10+4 interconnect can be ordered in any configuration from 7-10 servo channels and 0 to 4 isolated channels. In the 10+4 configuration, 14 servos can be connected if needed. There is a power connection each side that can be used as an extra servo channel. Connection Diagram
