Thomson Automation
LGC Configuration Guide 4
Thomson Automation- all rights reserved 2011
Airplane with air main retracts and 5 gear doors (Tricycle gear)
You will need:
Our LGCII

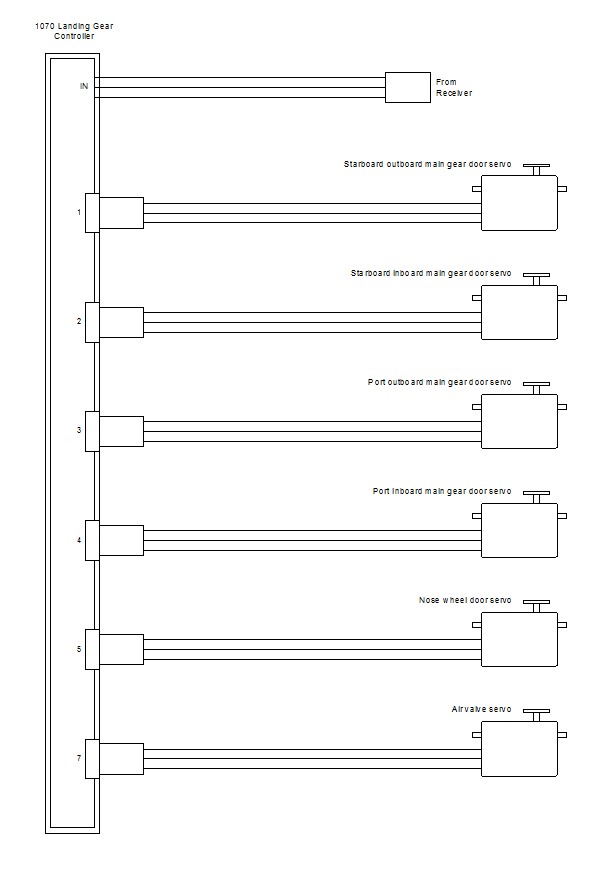

Connection Diagram
If you want to add Landing Lights, see our configuration guide on Landing Lights.
LGCII setup:
Operating mode 2 will provide sequential control of up to 3 retract servos and up to 4 door servos. See the LGCII User's Manual for more information on connecting and programming your servos.
